SATELLITE COMMUNICATIONS

Xelsat offers products of worldwide known suppliers of satellite communication

New Japan Radio Co NJT8370, GaN 25W, Universal Ku 13.75-14.5 GHz

Features:
  • LED Indicator Equipped
  • Compact Size & Light Weight Weight: 2.5 kg
  • Monitor & Control Line-up FSK Communications M&C RS-232C Interface M&C
  • RF Frequency Line-up Universal Ku-band: 13.75 to 14.5 GHz Standard Ku-band: 14.0 to 14.5 GHz
  • High Efficiency Output Power Saturation Output Power: +44.0 dBm ACPR: -30 dBc @ Pout = +42 dBm Power Consumption: 200 W
  • High Temperature Operating Operation Guarantee Temperature Range: -40 to +75 ºC
  • GaN Technology Amplifier Inside
Contact sales

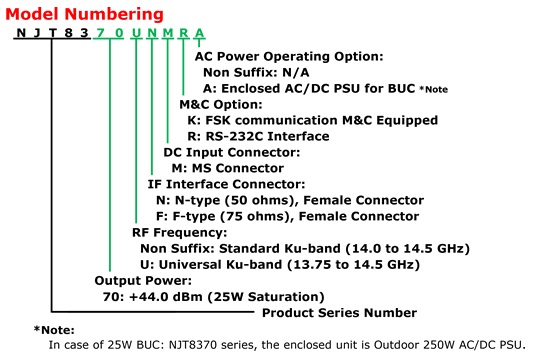

Models available:

Model No.RF
Frequency		Local
Frequency		IF
Frequency		Output PowerIF
Connector		Power SupplyM&C
NJT8370NMK14.0 to
14.5 GHz
(Standard
Ku-band)		13.05 GHz950 to
1,450 MHz		25W Saturation
(+44 dBm)		N-typeDC Power
applied on
MS Connector		FSK
M&C
NJT8370FMKF-type
NJT8370NMRN-typeRS-232C
M&C
NJT8370FMRF-type
NJT8370NMKAN-typeDC Power
supplied by
AC/DC PSU
FSK
M&C
NJT8370FMKAF-type
NJT8370NMRAN-typeRS-232C
M&C
NJT8370FMRAF-type
NJT8370UNMK13.75 to
14.5 GHz
(Universal
Ku-band)		12.8 GHz950 to
1,700 MHz		N-typeDC Power
applied on
MS Connector		FSK
M&C
NJT8370UFMKF-type
NJT8370UNMRN-typeRS-232C
M&C
NJT8370UFMRF-type
NJT8370UNMKAN-typeDC Power
supplied by
AC/DC PSU		FSK
M&C
NJT8370UFMKAF-type
NJT8370UNMRAN-typeRS-232C
M&C
NJT8370UFMRAF-type

Line-up

Specifications:

ItemSpecifications
Output InterfaceWaveguide, WR75 (with Groove)
Input InterfaceN-type, female (50 ohm)
[Model No.: NJT8370*N]
F-type, female (75 ohm)
[Model No.: NJT8370*F]
Saturation Output Power

+44 dBm min. @ +25 ºC
+43 dBm min. over temperature

Linear Gain72 dB nom., 66 dB min.
Power Requirement+48 VDC (+36 to +60 VDC)
100 to 240 VAC [AC Power Oparating Option]
Power Consumption120 W typ. @ No IF signal
180 W typ. @ Pout = +42 dBm
200 W typ., 230 W max. @ Psat
Temperature Range (ambient)
[Operating]

[Storage]

Operation Guarantee: -40 to +75 ºC
Performance Guarantee: -40 to +60 ºC
-40 to +75 ºC
Weight2.5 kg [5.5 lbs]
