Xelsat offers products of worldwide known suppliers of satellite communication

New Japan Radio Co NJT8319, 16W, Universal Ku 13.75-14.5 GHz

Features:
  • RoHS Compliance
  • LED Indicator Equipped
  • Compact Size & Light Weight Weight: 2.4 kg
  • Monitor & Control Line-up FSK Communications M&C RS-232C Interface M&C
  • RF Frequency Line-up Universal Ku-band: 13.75 to 14.5 GHz Standard Ku-band: 14.0 to 14.5 GHz
  • High Efficiency & Low Distortion P1dB: +42 dBm min. over temperature IM3: -28 dBc @ Pout = +39 dBm Power Consumption: 160 W
  • High Temperature Operating Operation Guarantee Temperature Range: -40 to +75 ºC
Contact sales

Models available: Model No. RF Frequency Local Frequency IF Frequency Output Power @ P1dB IF Connector Power Supply M&C NJT8319N 14.0 to 14.5 GHz (Standard Ku-band) 13.05 GHz 950 to 1,450 MHz 16W Linear (+42 dBm min.) N-type DC Power applied on IF Connector NA NJT8319F F-type NJT8319NM N-type DC Power applied on MS Connector NJT8319FM F-type NJT8319NMA N-type DC Power supplied by AC/DC PSU NJT8319FMA F-type NJT8319NK N-type DC Power applied on IF Connector FSK M&C NJT8319FK F-type NJT8319NMK N-type DC Power applied on either IF Connector or MS Connector NJT8319FMK F-type NJT8319NMR N-type RS-232C M&C NJT8319FMR F-type NJT8319NMKA N-type DC Power supplied by AC/DC PSU FSK M&C NJT8319FMKA F-type NJT8319NMRA N-type RS-232C M&C NJT8319FMRA F-type NJT8319UN 13.75 to 14.5 GHz (Universal Ku-band) 12.8 GHz 950 to 1,700 MHz N-type DC Power applied on IF Connector NA NJT8319UF F-type NJT8319UNM N-type DC Power applied on MS Connector NJT8319UFM F-type NJT8319UNMA N-type DC Power supplied by AC/DC PSU NJT8319UFMA F-type NJT8319UNK N-type DC Power applied on IF Connector FSK M&C NJT8319UFK F-type NJT8319UNMK N-type DC Power applied on either IF Connector or MS Connector NJT8319UFMK F-type NJT8319UNMR N-type RS-232C M&C NJT8319UFMR F-type NJT8319UNMKA N-type DC Power supplied by AC/DC PSU FSK M&C NJT8319UFMKA F-type NJT8319UNMRA N-type RS-232C M&C NJT8319UFMRA F-type

Model No.RF
Frequency		Local
Frequency		IF
Frequency		Output Power
@ P1dB		IF
Connector		Power SupplyM&C
NJT8319N14.0 to
14.5 GHz
(Standard
Ku-band)		13.05 GHz950 to
1,450 MHz		16W Linear
(+42 dBm min.)		N-typeDC Power
applied on
IF Connector		NA
NJT8319FF-type
NJT8319NMN-typeDC Power
applied on
MS Connector
NJT8319FMF-type
NJT8319NMAN-typeDC Power
supplied by
AC/DC PSU
NJT8319FMAF-type
NJT8319NKN-typeDC Power
applied on
IF Connector		FSK
M&C
NJT8319FKF-type
NJT8319NMKN-typeDC Power
applied on
either
IF Connector
or
MS Connector
NJT8319FMKF-type
NJT8319NMRN-typeRS-232C
M&C
NJT8319FMRF-type
NJT8319NMKAN-typeDC Power
supplied by
AC/DC PSU
FSK
M&C
NJT8319FMKAF-type
NJT8319NMRAN-typeRS-232C
M&C
NJT8319FMRAF-type
NJT8319UN13.75 to
14.5 GHz
(Universal
Ku-band)		12.8 GHz950 to
1,700 MHz		N-typeDC Power
applied on
IF Connector		NA
NJT8319UFF-type
NJT8319UNMN-typeDC Power
applied on
MS Connector
NJT8319UFMF-type
NJT8319UNMAN-typeDC Power
supplied by AC/DC PSU

NJT8319UFMAF-type
NJT8319UNKN-typeDC Power
applied on
IF Connector		FSK
M&C
NJT8319UFKF-type
NJT8319UNMKN-typeDC Power
applied on
either
IF Connector
or
MS Connector
NJT8319UFMKF-type
NJT8319UNMRN-typeRS-232C
M&C
NJT8319UFMRF-type
NJT8319UNMKAN-typeDC Power
supplied by
AC/DC PSU
FSK
M&C
NJT8319UFMKAF-type
NJT8319UNMRAN-typeRS-232C
M&C
NJT8319UFMRAF-type

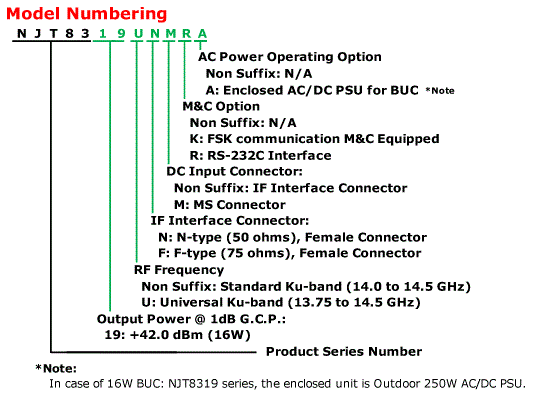

Line-up

Specifications:

ItemSpecifications
Output InterfaceWaveguide, WR75 (with Groove)
Input InterfaceN-type, female (50 ohm)
[Model No.: NJT8319*N]
F-type, female (75 ohm)
[Model No.: NJT8319*F]
Output Power @ 1dB G.C.P.+39 dBm min. over temperature
Linear Gain68 dB nom., 62 dB min.
Power Requirement+48 VDC (+36 to +60 VDC)
100 to 240 VAC [AC Power Oparating Option]
Power Consumption140 W typ. @ No IF signal
160 W typ., 180 W max. @ Pout = +42 dBm
Temperature Range (ambient)
[Operating]

[Storage]

Operation Guarantee: -40 to +75 ºC
Performance Guarantee: -40 to +55 ºC
-40 to +75 ºC
Weight2.4 kg [5.3 lbs]
