SATELLITE COMMUNICATIONS

Xelsat offers products of worldwide known suppliers of satellite communication

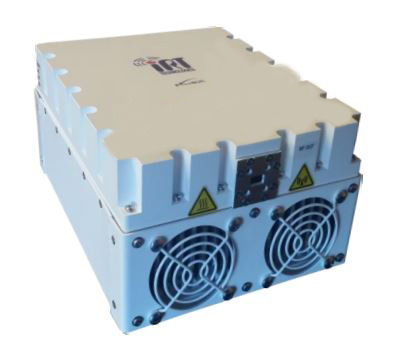

IRT KA band BUC, 8-20 Watt

Features:
  • Internal 10 MHz Reference Clock Optional
  • Switchable LO option – Commercial and Military Ka-Band in One Unit
  • Integrated L-Band to Ka-Band Up Converter
  • Superior RF performance: Phase noise 3dB better than IESS308/309. Rated Power up 43dBm. Spurious below -60dBc. Wide dynamic range of Gain Control
  • Ideal for Feed Horn Mounting
  • Up to 20W power in this super-compact and light weight package 8"x6.5"x4.5" only!
Contact sales

IRT Technologies 8W / 10W / 20W Ka-Band Block Up Converter PicoBUC® series are revolutionary in size and weight - PicoBUC® offers superior performance in an extremely compact package that can fit in your palm! Weighing at only 5.5lbs, the PicoBUC® is the most powerful and feature rich for its size: Up to 20W rated power.

Built in optional AC power supply provides the customer with the simplest and least expensive plug-into-the wall solution. IRT PicoBUC® features best in class RF characteristics, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analog Interfaces.

PicoBUC® remarkably small size and low power consumption results in better heat extraction that leads to overall system size and cost reduction making it the ideal candidate for portable, mobile and VSAT on the move applications. Its small size and weight allows direct feed horn mounting, which makes it a most economical solution for fixed VSAT applications.
